µTHRU

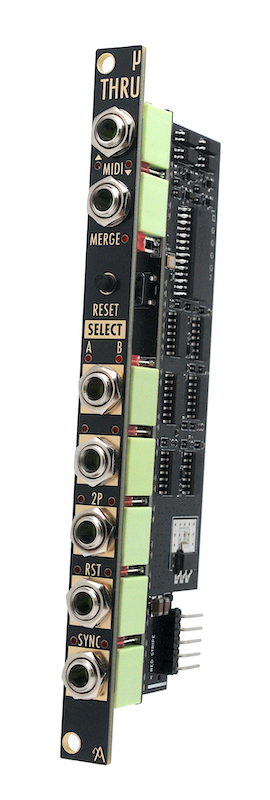

MIDI THRU and Merge

The main use of the module is to send MIDI from one input to five outputs (this is the ‘common Thru’ function).
In addition there is a second MIDI input which will merge MIDI data to the 5 outputs.

More goodies:

  • MIDI inputs accept type A and B (no setup required)

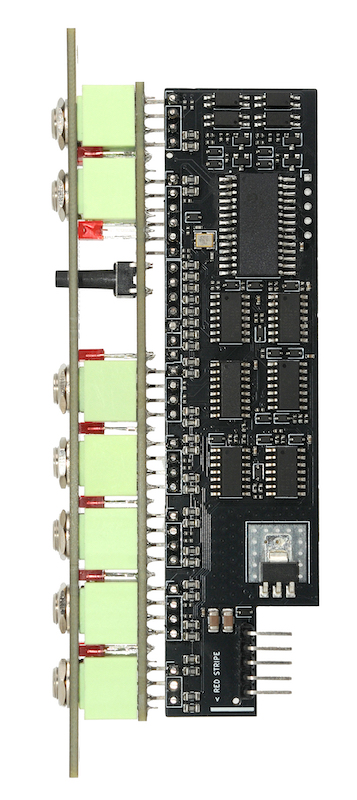

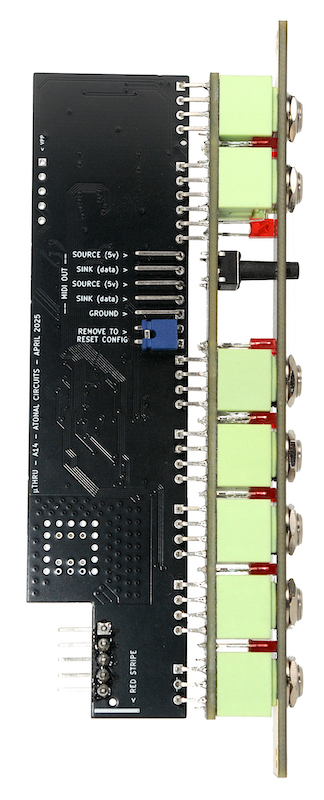

  • 5 TRS MIDI outputs + 2 rear outputs on pin header
  • Swap type A to B for every output from the front panel (no fragile mechanical switches)
  • Merge input (with hardware bypass if zero latency is required)
  • MIDI Clock to analog sync outputs signals:
    • 1 pulse per step
    • 2 pulses per step (Korg / Teenage Engineering)
    • DIN SYNC
    • Start / Stop / Reset
  • MIDI inputs and outputs can handle +/- 10V modular voltages.
  • 2 HP

EURORACK MODULE
SIZE: 2HP – 4.4 mm deep (including inserted power connector)
+12V : 32 mA
-12V : 0 mA
+5V : 0 mA

A14- uTHRU – USER MANUAL

µOUT

Line output module

This is an output module that can drive headphones. Two additional mono inputs are mixed with the output.

  • Left input is normalled to the right input.
  • 2 additional mono inputs with dedicated level potentiometer.
  • +4 dBu peak detector led (professional line level).
  • Rear pin-header connector with pre-fader signal output.

EURORACK MODULE
SIZE: 2HP – 25 mm deep (including inserted power connector)
+12V : 25 mA
-12V : 22 mA
+5V : 0 mA

A13 – uOUT – USER MANUAL

TONE HACK

Lo-Fi synth in 4 HP

A classic Lo-Fi synth keyboard now in eurorack, unique module!
Check demo video or hear it

  • 99 tones, 4 voices of polyphony
  • CV for synth crystal oscillator
  • Chord mode (create your 4 notes chords)
  • Recall chords + transpose + inversion
  • MIDI input
  • Circuit bending “crash mode” function

EURORACK MODULE
SIZE: 4HP – 46 mm deep (including inserted power connector)
+12V : 115 mA
-12V : 8 mA
+5V : 0 mA

A piece made with Tone Hack, the Noise Pattern Generator (A03) and Chipz (Cre8audio):

Buffered Multiples

Utility: signal replication

  • INPUT 1 feeds OUTPUT 1 through 6. If a jack is plugged into INPUT 2, INPUT 1 will supply OUTPUT 1 through 3, and INPUT 2 will supply OUTPUT 4 through 6.
  • The two-color LED indicates the polarity and activity of the signal applied to INPUT 1 only. (red is positive, green is negative).

Please note that the opamp model used is TL072. Accuracy will not let you drive many oscillators in perfect unison. No problem for audio / modulation / clock signals.

EURORACK MODULE
SIZE: 2HP – 26 mm deep (including inserted power connector)
+12V : 18 mA
-12V : 18 mA
+5V : 0 mA

SEE

Utility: voltmeter

This is not a fancy VU meter, it has a linear response and is designed to measure voltages to help you understand
what’s going on with your control voltages. Each LED represents 1 volt (red for positive range and blue for negative range).

  • Both jacks sockets are in parallel, so select one for the input signal and the other for the output signal.
  • The unique button toggles between plain mode (default) or dot mode.

EURORACK MODULE
SIZE: 2HP – 41 mm deep (including inserted power connector)
+12V : 65 mA
-12V : 8 mA
+5V : 0 mA

K7

audio FX: dynamic pre-emphasis (as in cassette recorders)

Do you remember cassettes decks with “noise reduction” system? This module contains an encoder wich enhance high frequencies of low level signals. It adds highs in a subtle way…

  • DRY/WET : balance between input and output
  • INPUT : attenuation/gain
  • 2 discrete channels

EURORACK MODULE
SIZE: 4HP – 38 mm deep (including inserted power connector)
+12V : 60 mA
-12V : 15 mA
+5V : 0 mA
A07 – K7 – DATASHEET


AUDIO DEMO:

In the following audio examples, each part is delimited by a woodblock sound:

  • original audio sample
  • full dry
  • pot at 9 o’clock
  • pot at 12 o’clock
  • pot at 3 o’clock
  • full wet

80’s beat:

real drum:

electro loop:

disco loop:

real drum 2:

tech house:

bongo:

guitar:

piano:

texture pad:

voice:
