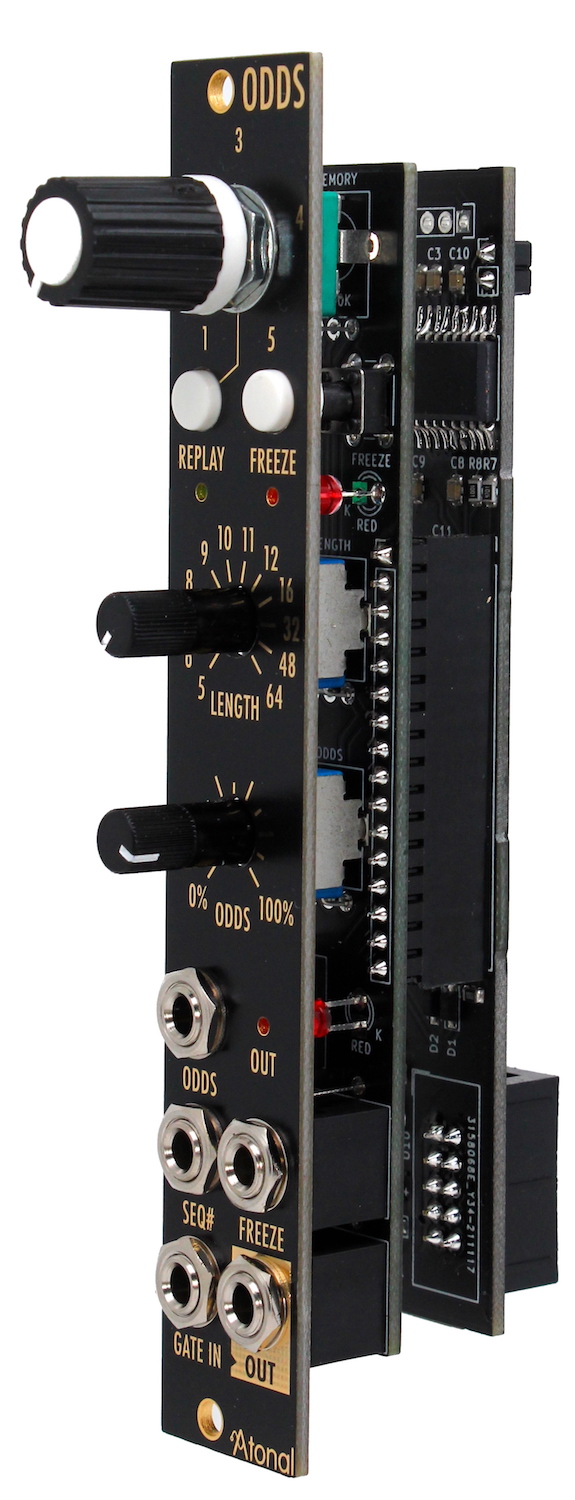

Gate probability with memory.
This module allows to control the probability to pass incoming gate signals at the output.
The resulting sequence can be “freezed” and stored in 5 memories.
Check demo video

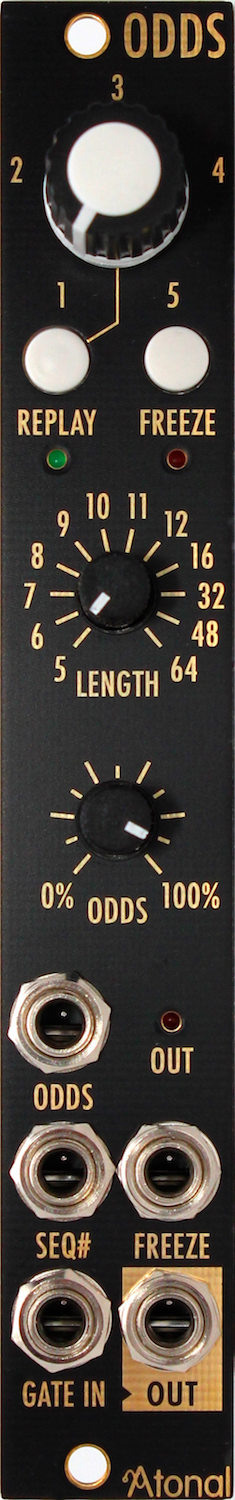

- SEQ# : selects memory to play (white pot).
- REPLAY / FREEZE sequence
- LENGTH : sequence length
- OODS : probability to pass gate at the output
- CV input for ODDS / SEQ# / FREEZE
SIZE: 4HP – 38 mm deep (including inserted power connector)
+12V : 12 mA
-12V : 0 mA
+5V : 0 mA
