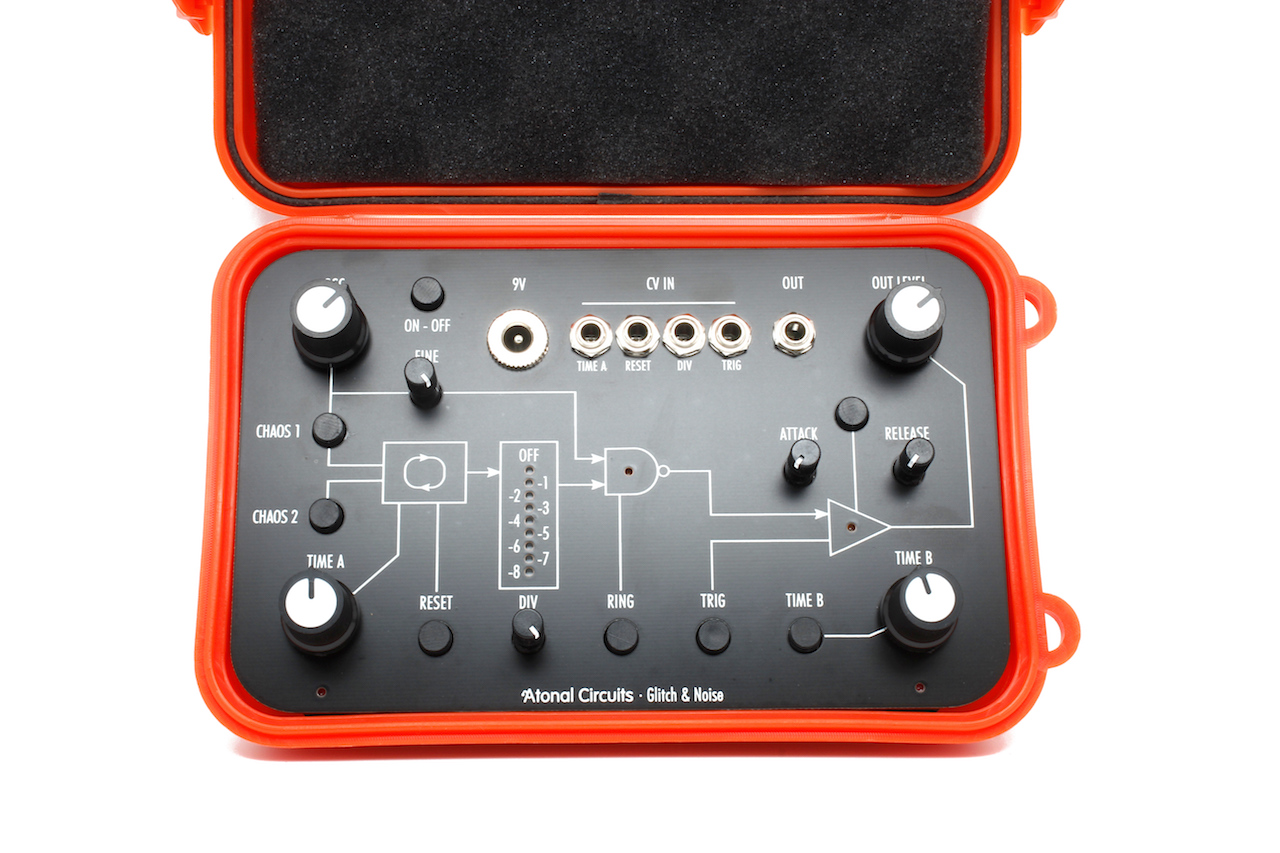

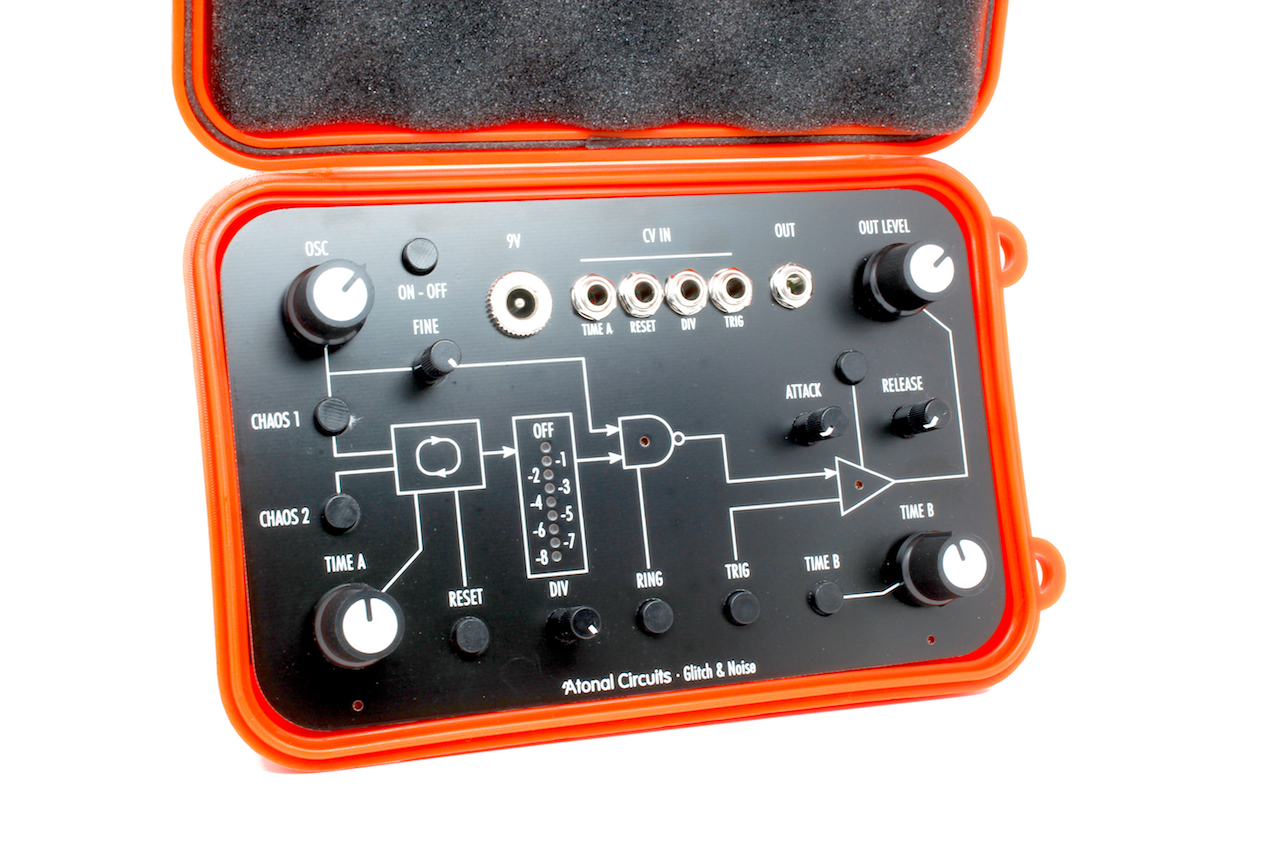

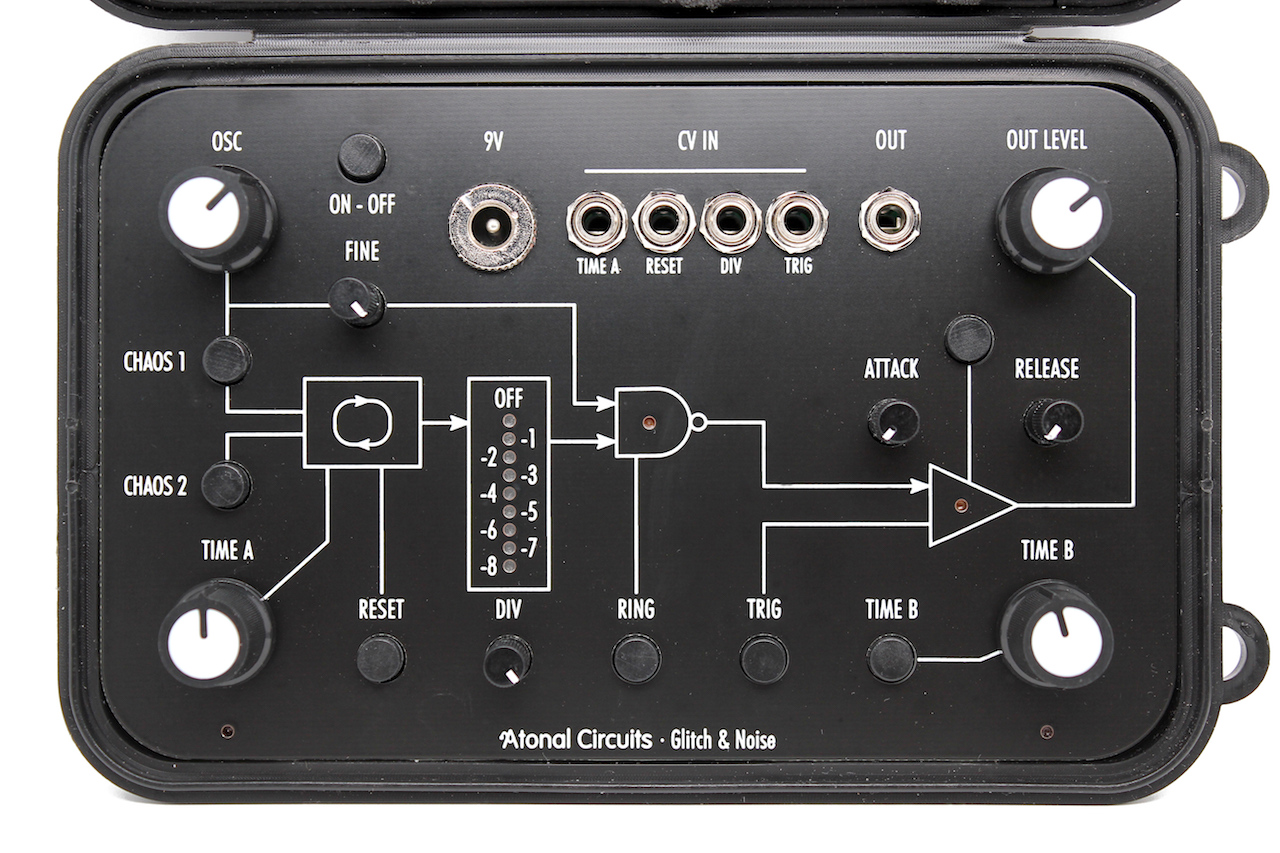

A01 – Glitch & Noise

This device is based on the popular PT2399 delay chip. Check demo video!

Features:

  • PT2399 used as noise core
  • main delay time knob + momentary alternative delay time
  • frequency divider (8 octaves down)
  • ring modulation
  • 4 CV input: time / reset / div / trigger (0 – 5V, +/- 12V protected)
  • attack / release controls
  • quality potentiometers

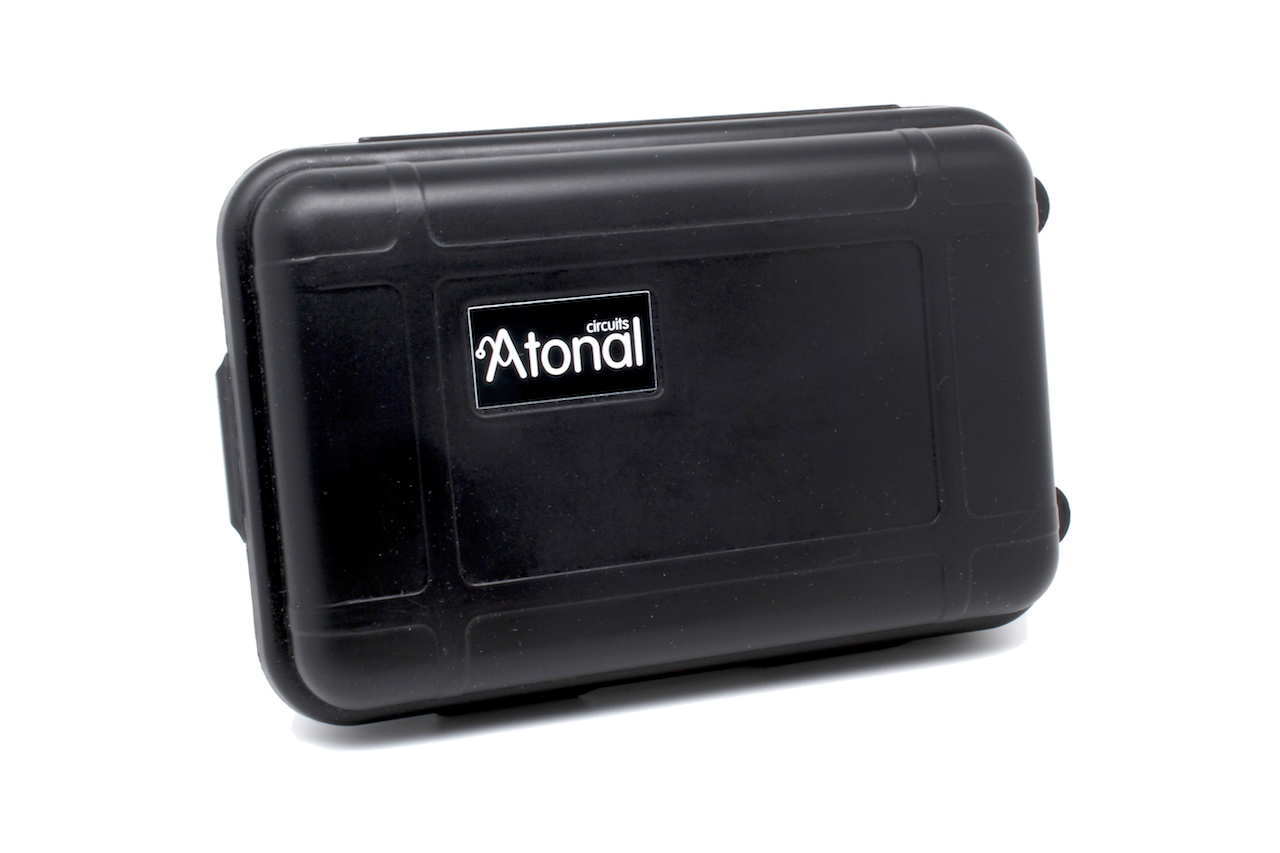

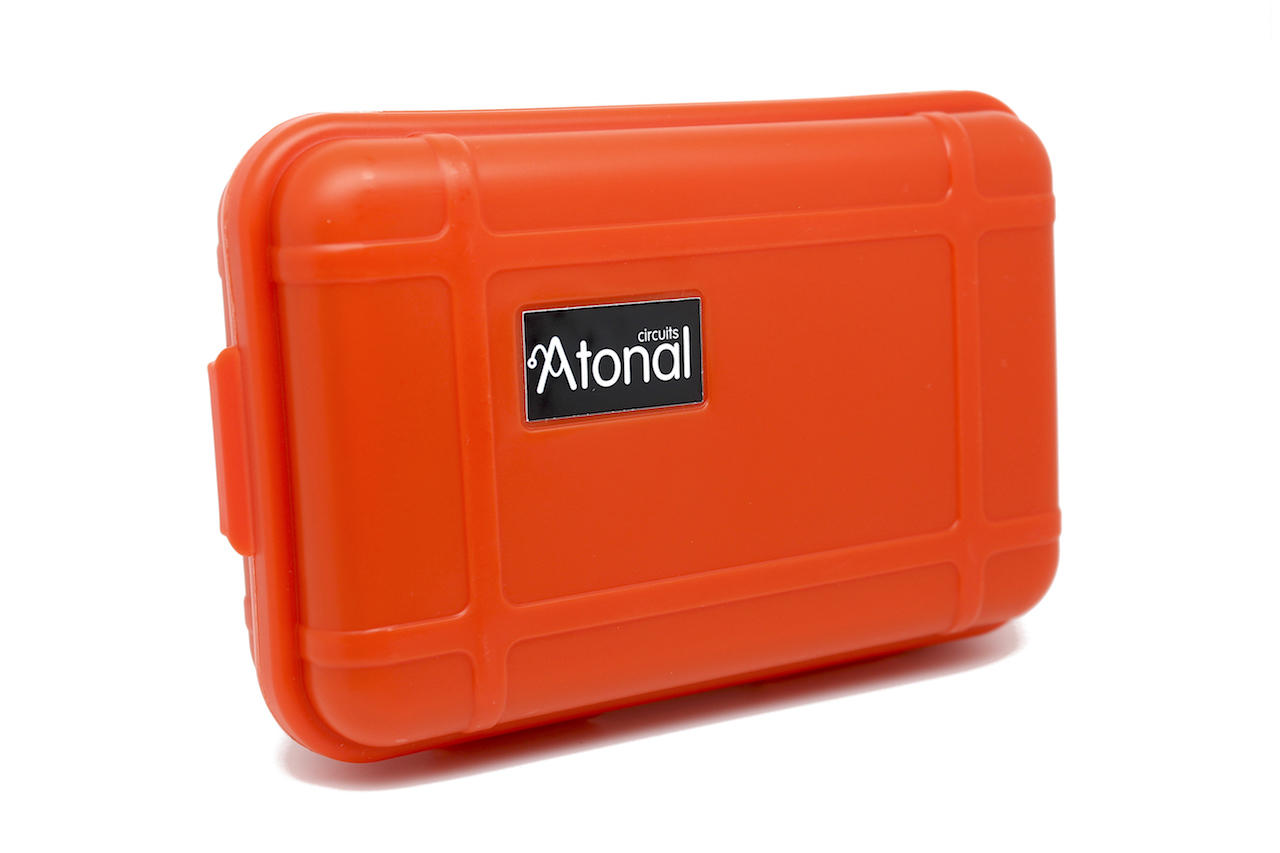

  • water resistant enclosure: 165 x 105 x 55 mm (black / orange)
  • mono / 2x mono 3.5mm jack output (can drive headphones)
  • power: 9 – 12V / 50mA (2.1 X 5.5mm DC jack, center positive)
  • shipped with 9v battery clip adapter

DATASHEET

Please note that this synth produce random noises.
You will not be able to achieve twice the same sounds (but similar at least).
